Description

Features:
• Advanced Color Touchscreen Control and Monitoring
• Intuitive HMI control screens
• Nema 3R type design
• Maintenance Screen for specific overall kW selection
• Network multiple load banks
• Adjustable exhaust louvers for HVAC testing/commissioning

Load Bank Ratings:
• Standard Capacity rating of 1250 kW at 480V, 800kW at 240V.
• Standard Voltage rating of 240, 480 VAC, 3 Phase, 60 Hz.
• Load step resolution 5kW at 240 or 480 VAC

Please contact us if you require any nonstandard ratings.

Control Power:
Provided by an integral dual voltage control power transformer

Cooling System:
Dual voltage(240 & 480V) capability from either internal or external source. Cooling circuit is protected by fusing, circuit breakers and motor start components. Air discharge will be horizontal.

System Digital Controls:
Integral PLC and Color Touchscreen HMI. Full Volt, Amp, Frequency, kW monitoring along with real time data acquisition.

HMI screens include Power Date, Safety, Screen Capture, Data Logging and Maintenance.

Load controls consist of kW Select, Load On, Load Apply, Load Drop and Load Profile(up to 10 load steps).Load resolution is 5kW at 240 & 480 VAC, 3 Phase 60 Hz.

Comprehensive safety features ranging from Over Temperature and Over Voltage to Phase Loss/Reversal Door Panel status and a physical push button E-Stop.

Network multiple load banks from a single HMI. A USB port is included for Data download and software/firmware updates.

Cable Storage Reels: Two (2) AC Powered, and covered are provided. Includes directional controls & footswitch.

Enclosure:
Heavy gauge steel and aluminum with powder coat finish. RAL 7042 Color with Matt Finish Polyester Powder Coat.
Enclosure is Nema 3R Type construction for operation in indoor and outdoor environments.
Hinged access doors with lockable latches.

Power Connections:
Industry Standard color coded quick disconnect connectors are provided.

Resistor Elements:
ULB “Helicon” high-capacity Nichrome load elements. Elements are fully supported with stainless steel rods and high temperature refractory ceramics for quick hea discharge.

Mobility:
Load Bank and storage reels are factory mounted and balanced on a DOT rated trailer.

Certifications:
UL & cUL Listed. Manufactured in an ISO-9001:2015 certified facility.

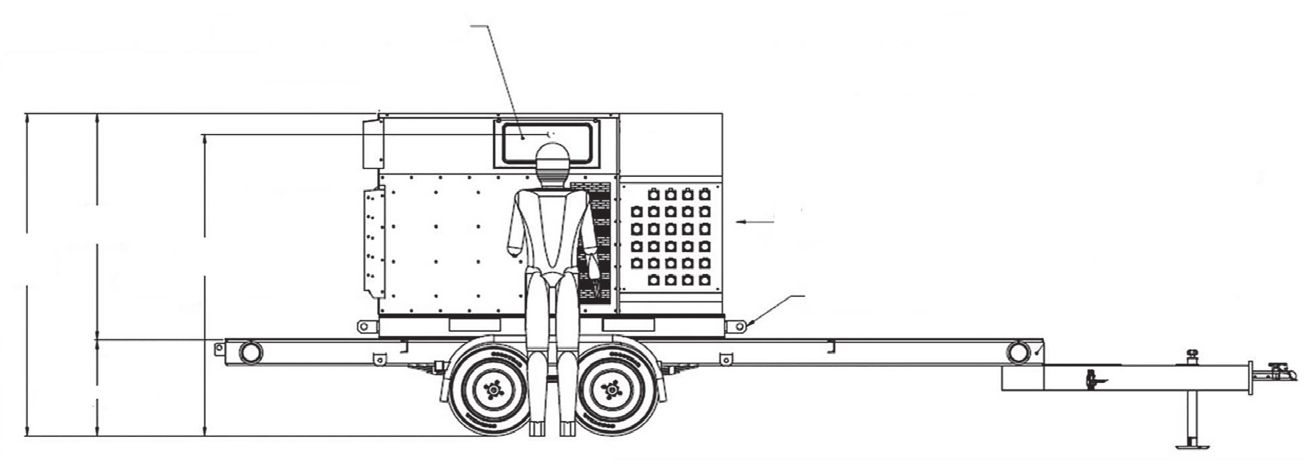

Dimensional Information:
83 W x 250 L x 78 H (inches).
211 W x 635 L x 198 H (cm)
Approximate weight of 7127 lbs /3232 Kgs

Specifications subject to change without notice.

Available Options:
Remote Laptop Control.

Trailer Ready Design

Warranty:
One (1) year after acceptance or shipment. Warranty covers material and workmanship on new equipment, and ULB spare parts.
