Cast Resin Dry Type Transformers

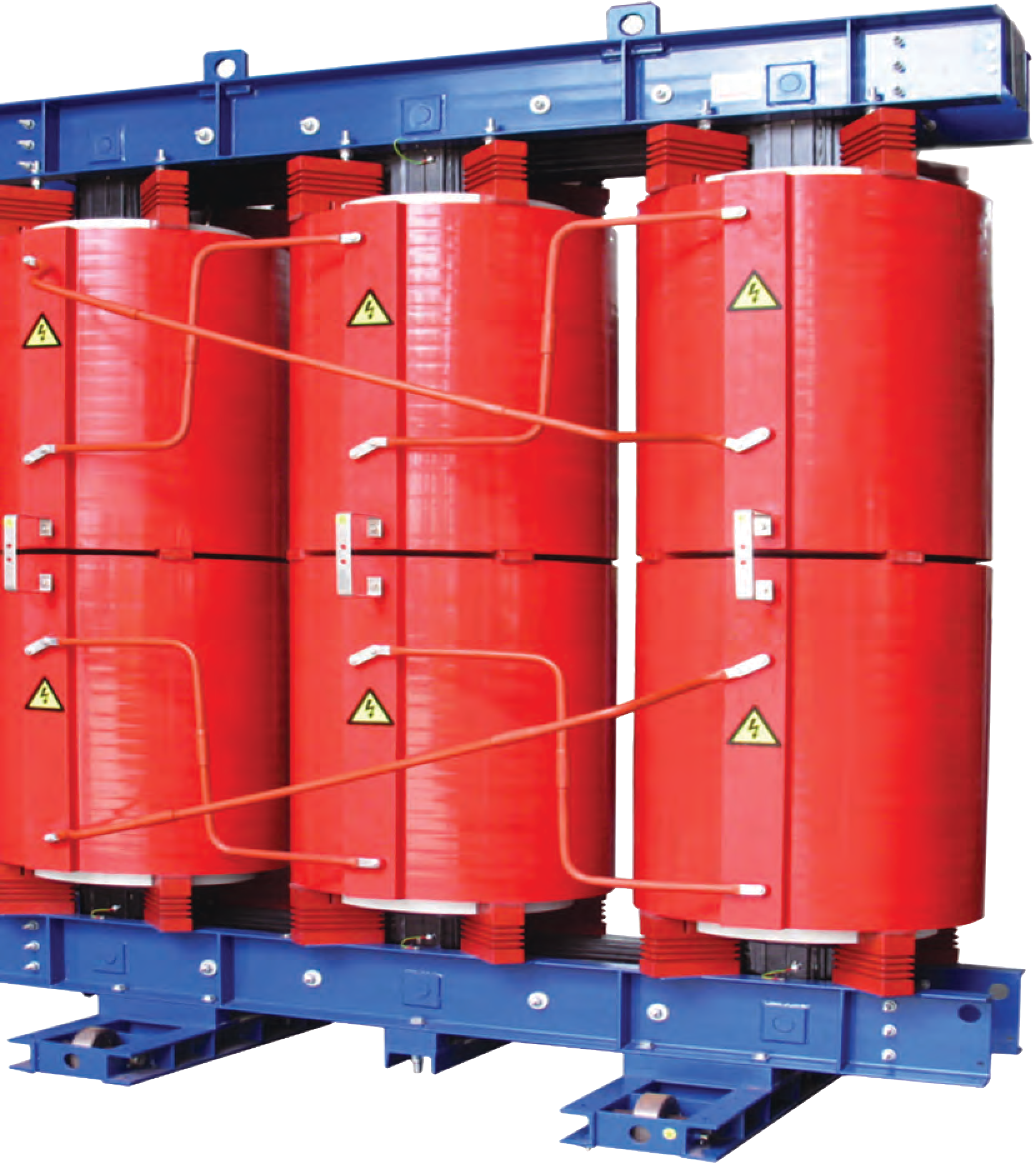

Cast Resin Dry Type Transformers - Image 2

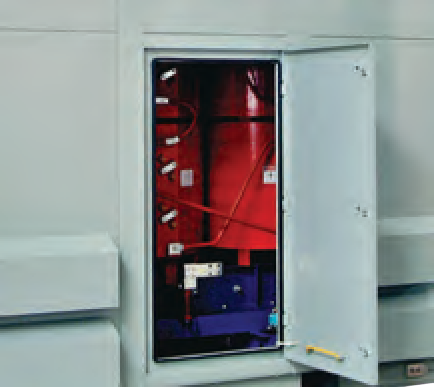

Cast Resin Dry Type Transformers - Image 3

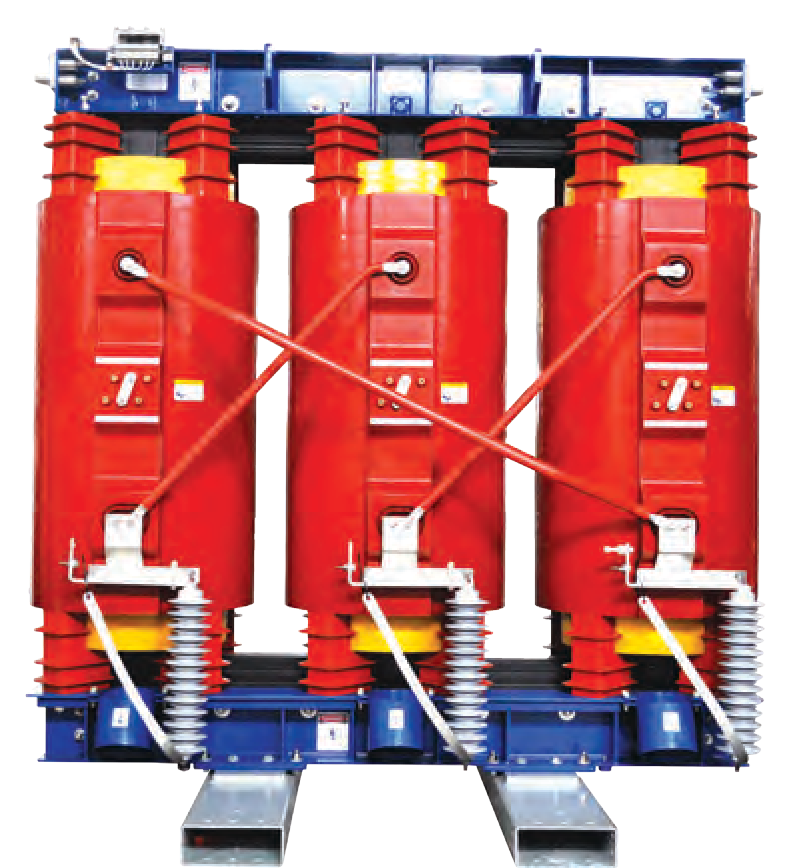

Cast Resin Dry Type Transformers - Image 4

Cast Resin Dry Type Transformers

JST Power Equipment is more than a manufacturer – we are a solutions innovator at the cutting edge of transformer technology. We continually work to create products with higher efficiencies and lower costs. Each year we make substantial investments in the research and development of new products and manufacturing techniques. We regularly innovate on behalf of our customers, collaborating with them to find solutions to their specific challenges. Explore JST’s Cast Resin Transformers.

Request a Quote

Description

Advantages

  • Low Maintenance: Cast Resin Transformers require only occasional visual inspections. No oil sampling or Doble testing of bushings is required.
  • Eco-Friendly: No oil in the design, making them ideal for environmentally sensitive areas.
  • Safety: Flame-retardant, self-extinguishing, and produces no toxic by-products.
  • Very High Short-Term Overload Capacity: Resin and fiberglass encapsulation provide superior overload capability.
  • Space Savings: Compact design eliminates oil containment structures, fire suppression systems, and coolers.
  • Low Noise Levels: Compact construction results in lower operating noise.
  • Designed for Harsh Environments: Maximum protection against moisture, particulates, pollution, salt, and harsh weather conditions.

Capabilities

JST Power Equipment is one of the largest manufacturers of Cast Resin Transformers in the world. We design, test, and manufacture transformers for demanding applications.

Current capabilities include:

  • Up to 45 MVA
  • Up to 40.5 kV
  • Up to 200 kV BIL

Standard Features

  • Primary and Secondary Cast Resin Transformer Construction
  • Aluminum or Copper Windings
  • Standard ANSI 61 Gray Powder Paint Enclosures
  • Easy Access Terminal Taps
  • Multiple and Customer Bus Configurations Available
  • Highest Quality Grain Oriented Steel
  • 80°C and 115°C Temperature Rise Options
  • 180°C Class H UL Listed Insulation System
  • UL and cUL Listings
  • 50 or 60 Hz

Optional Features

  • Special Paint and Customer Paint Colors Available
  • Forced Air Cooling
  • Water Cooling
  • Pad Mounted Design
  • Jacking Pads
  • Anti-Vibration Mounting Systems
  • Electrostatic Shielding
  • Temperature Monitoring Systems
  • Metering
  • IR Viewing Ports
  • Custom Control Panels
  • Surge Arresters
  • Neutral Grounding Resistors
  • Ground Fault Relay Protection
  • Drive Isolation Ratings
  • Low Inrush Current Design
  • Special Enclosure Ratings (Marine, Fungus Resistance, UV)
  • RC Snubber with Monitoring Circuit

Applications

  • Marine and Offshore Applications
  • Traction Power Systems
  • Power Distribution
  • Power Plant Applications
  • Indoor & Outdoor Substations
  • Mobile Substations
  • OEM Equipment
  • Drive System Applications
  • Reactor Applications
  • High Peak Demand Loads
  • Harmonic Load Applications
  • Chemical Plants
  • Petrochemical Plants
  • Mining
  • Pulp & Paper Plants
  • Wind Power Generation
  • Excitation Rectifier Transformers
